Pharmapack (GUANGZHOU) Packaging Equipment Co., Ltd

The machine can put the bottle, blister board, material holder, and other materials into the carton and then seal the box. If you use it with our folding machine, you can load the manual into the paper tray. Applicable carton size must be within 35 – 70 x 35 – 70 x 60 – 110 mm. Output is up to 250 cartons per minute.

Designed to put products with leaflets into cartons. Defective products will be detected and rejected. Applicable carton size must be within 35 – 70 x 35 – 70 x 70 – 110 mm. Output is up to 400 cartons per minute. Adjustment system with digital indicator makes easy change-over and minimizes errors.

The machine can put the bottle, blister boards and other material holders into the car-ton and then seal the box. If you use it with our folding machine, you can load the manual into the paper tray. This machine is suitable for food, pharmaceutical, cos-metics and other industries. Output is up to 200 cartons per minute.

The machine can put the bottle, blister boards and other material holders into the car-ton and then seal the box. If you use it with our folding machine, you can load the manual into the paper tray. This machine is suitable for food, pharmaceutical, cos-metics and other industries. Output is up to 250 cartons per minute.

The machine can put the bottle, blister boards and other material holders into the car-ton and then seal the box. This machine is suitable for food, pharmaceutical, cosmet-ics and other industries. Output is up to 250 cartons per minute.

This machine design conforms to GMP standards and the relevant industrial safety rules in force. The footprint of the equipment is very small and it occupies little space. It is specially designed for automatic cartoning of medicines and cosmetics, and has a "Balcony" structure. The main driving part and the auxiliary driving part are installed on the side of the conveying mechanism, which makes cleaning, maintenance, inspection and product changeover more convenient.

The LFBI-12 is a versatile cartoner which is ideal for the pharmaceutical and nutraceutical indus-tries. With speeds up to 120 cartons per minute, cartons are automatically transported by a toothed conveying belt. A rotary encoder monitors linear movement which allows for the handling of even the most difficult to open cartons with ease. PLC controlled; parameters are set from the HMI on a touchscreen.

The machine can put the bottle, blister boards and other material holders into the car-ton and then seal the box. This machine is suitable for food, pharmaceutical, cosmet-ics and other industries. Output is up to 150 cartons per minute. Applicable bottle must be within 75~135 mm x 30~50 mm x 14~50 mm in size.

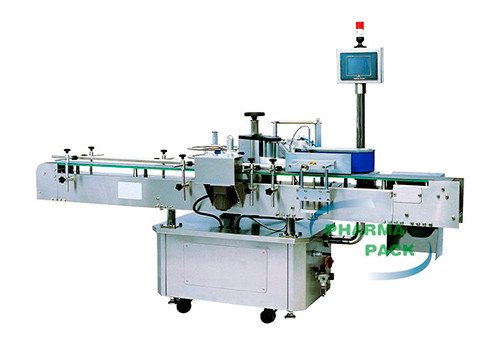

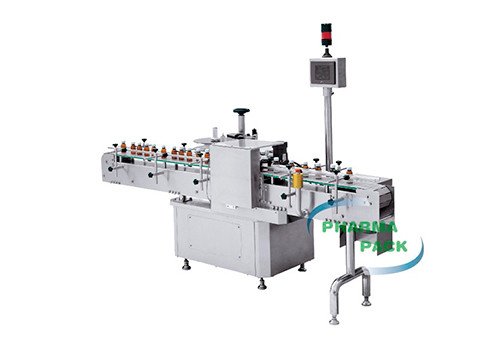

Equipped with advanced servo-motor driven labeling head, repeatable labeling accuracy is 0.5 mm. Dual rollers to ensure label dispensing accurately, compact design for easy changeover of labels. Bottles are fed into conveyor via bottle separator. A product sensor detects the presence of a bottle, instructs to dispense a label. Applicable container size must be within 16 – 120 mm.

The system is designed to attach pre-folded leaflets on to packaging bottles during the labeling process so that the relative position between the label and the leaflet can be properly ensured. It can handle side labeling, 3-side wrap labeling on square bottles, and wrap around labeling on round bottles. The system runs at up to 80 bottle/min and is widely used for pharmaceutical and cosmetics, food, beverage, nutraceutical industries.
