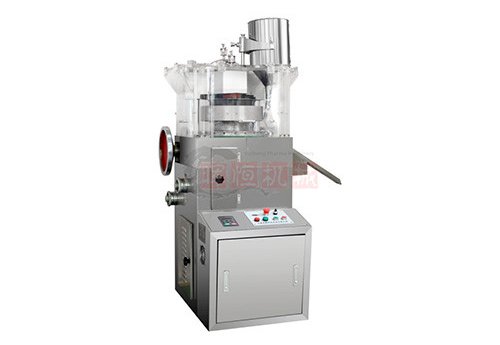

SHH-ZP17B Rotary Tablet Press Machine

Only 616, Per today 1

China Shanghai Huiheng Pharmaceutical Machinery Co., Ltd.

Shanghai Huiheng Pharmaceutical Machinery Co., Ltd. is a national high-tech enterprise specialized in R&D, manufacturing, sale and after-sale service of pharmaceutical machinery. Headquartered in Shanghai, HUIHENG is shouldering the mission of serving the pharmaceutical industry with advanced technology, and always follows the latest requirements from cGMP, FDA, PICs and other authorities.

Detailed

Characteristics

Capacity/hour pcs/hour
28500
Type of application
industrial

Description

The Machine is a versatile tablet press designed for pharmaceutical and related industries. With 17 punch stations, it produces 11,400-28,500 tablets per hour (10-25 rpm) and features a high 120kN pressing force. The machine accommodates large tablets (up to 40mm diameter) with adjustable thickness (8-15mm) and fill depth (18-30mm). Its hydraulic system includes overload protection and pressure monitoring. The compact (900×800×1640mm) design is ideal for producing round, shaped, double-layer, and engraved tablets. The 7.5kW motor powers this robust 1500kg machine, suitable for diverse granular materials in pharmaceutical and industrial applications.
