Ambica Pharma Machines Pvt. Ltd.

Used for filling containers 25 – 38 mm in diameter and 36 – 75 mm in height with injectable powders and stoppering the containers with butyl stoppers 20 mm in diameter. Fully SS 304 pipe frame structure. All Contact Parts are SS 316/316L and easily removable for autoclaving.

Production Rate: 240 fills/ min. for Single Dose, 240 fills/ min. for Double Dose 120 fills/ min. Power Specifications: 440 Volts, 3 Phase, 50 Hz. Fill Capacity: 50 mg. to 1.5 gm. in Single Dose. Accuracy: ± 1% depending upon consistency and uniformity of bulk density of Injectable Powder under controlled level of humidity (below 25% Rh).

Production Rate: 240 fills/ min. for Single Dose, 120 fills/ min. for Double Dose, 80 fills/ min. for Triple Dose, 60 fills/ min. for Four Dose. Power Specifications: 440 Volts, 3 Phase, 50 Hz. Accuracy: ± 1% depending upon consistency and uniformity of bulk density of Injectable Powder under controlled level of humidity.

Production Rate: 120 fills/ min. for Single Dose, 60 fills/ min. for Double Dose, 40 fills/ min. for Triple Dose, 30 fills/ min. for Four Dose. Accuracy: ±1% depending upon consistency and uniformity of bulk density of Injectable Powder under controlled level of humidity.

Production Rate: 60 fills/ min. for Single Dose, 30 fills/ min. for Double Dose, 20 fills/ min. for Triple Dose, 15 fills/ min. for Four Dose. Power Specifications: 440 Volts, 3 Phase 50 Hz. Accuracy: ± 1% depending upon consistency and uniformity of bulk density of Injectable Powder under controlled level of humidity

Production Rate: 40 fills/ min. for Single Dose, 20 fills/ min. for Double Dose, 12 fills/ min. for Triple Dose, 10 fills/ min. for Four Dose. Power Specifications: 230 Volts, 1 Phase. Accuracy: ±1% depending upon consistency and uniformity of bulk density of Injectable Powder under controlled level of humidity (below 28% RH).

Used for filling containers 25 – 38 mm in diameter and 36 – 75 mm in height with injectable powders and stoppering the containers with butyl stoppers 20 mm in diameter. Fully SS 304 pipe frame structure. All Contact Parts are SS 316/316L and easily removable for autoclaving.

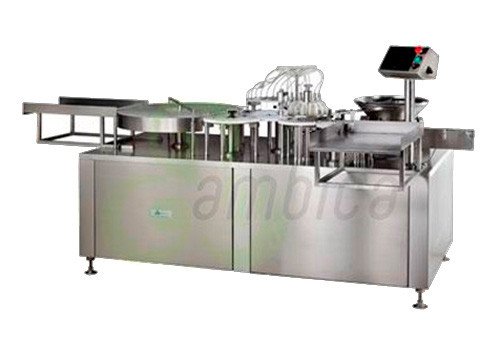

Fill Size: 2 ml to 100 ml (with the help of Change Parts). Rubber Stopper: 13 mm / 20 mm / 32 mm – Plain / Slotted Stoppers with the help of Change Parts. Container Diameter: 16 mm to 52 mm, container Height: 75 mm max. No Vial – No Filling – No Stoppering System. PLC & Color Touch Screen – 5”

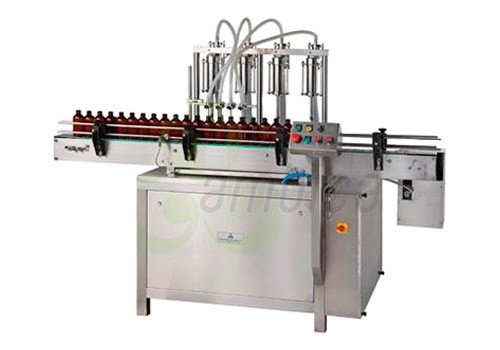

Rigid vibration free construction for trouble free performance. S.S. frame, top, covers, conveyor guides and other parts. Elegant and easy reach control panel for total control and operation. “No Container – Machine Stop” system. No Change Parts required for different size of bottle dia.

Rigid vibration free construction for trouble free performance. S.S. frame, top, covers, conveyor guides and other parts. Elegant and easy reach control panel for total control and operation. “No Container – Machine Stop” saves valuable liquid and down time for cleaning. No Change Parts required for different size of bottle dia.
