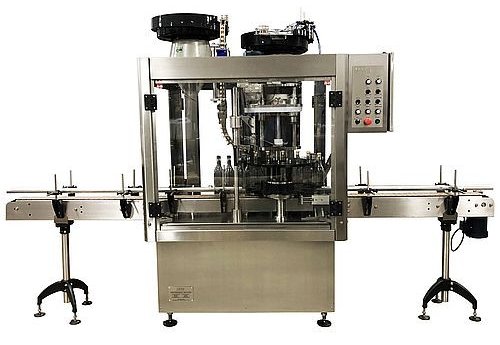

ACASI single head ROPP bottle capper with vibratory feeder model ROP1-VIB Machine designed to place and form metal caps on a wide range of containers – enclosures. Price includes one set of change of parts (star wheel, outer guide and cap delivery). Acasi ROPP capping head model VA90, manufactured in 304 stainless steel and hardened forming discs. Bottle will pick up cap and the container will be indexed into position. Fully adjustable from 7 inch to 14 inch high containers. (Special configurations available on request). Maximum bottle diameter with 12 pocket star wheel: 4.25 in Maximum bottle diameter with 6 pocket star wheel: 8.00 in Center CAM manufactured in special cam rated plastic material. Automatic start and stop with presence or absence of containers. 12 or 6 pocket center star wheel for container handling (Depends on the size of the container). Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills). 2 Hp Ac motor with frequency drive speed control Stainless steel electric enclosure. Heavy duty 304 Stainless steel welded frame. Stainless steel enclosure with polycarbonate windows and safety switches. All shafts from ¼ to 2.5 inches are manufactured in 304 stainless steel. Gear driven transmission machine to avoid timing loss. Complete height adjustment with bottle setting guide for quick changeovers. Tool less changeovers for star wheels and most change parts.
Model ROP1-2VIB-TC Capping Machine
总共 347,
今天 3
美国
ACASI Machinery
ACASI Machinery is a packaging machinery manufacturer specializing in numerous pieces of equipment. ACASI Machinery was founded with the main purpose of delivering excellent quality machines at reasonable prices, something the packaging machinery industry has been missing for years. We get our machines from our 40,000 square feet factory in South America. We then do final assembly, testing and training in our facility in Miami. We keep our costs down by offering standard machines that we can produce in large quantities and use economies of scale as well as cheap metalwork labor to achieve our low costs without compromising in quality. All our machines are assembled with high quality US off the shelve components to guarantee that our customers have always access to spare parts. These common components can be purchased through us or your local vendor.
规格
-
生产效率/h 粒/h3600
-
产品类型瓶子, 小瓶, 宝特瓶
