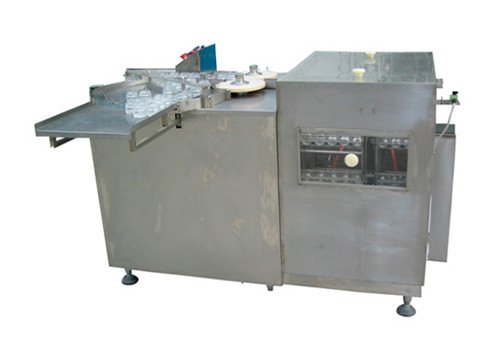

HD-Ultrasonic Washing Machine Series ensures complete washing that prevents any contamination in/outside of any cylindrical containers such as vials and ampoules under compliance of GMP regulations. Perfect Washing Efficiency by Ultrasonic Generator. Fast and easy size change of all sizes of ampoules and vials.
HD-SDT Series are designed to sterilize and depyrogenate ampoules or glass vials by a laminar flow of hot air at up to 350 degrees. It is constructed with 3 parts, preheating zone, heating zone and cooling zones. After clean vials are sent to the sterilizing and Drying Tunnel automatically, they will be completely sterilized and dried in the airtight tunnel of laminar flows.
The rotary bottle washing machine is compact and highly efficient machine with elegant look. This multifunctional multi featured machine meets the GMP requirements of washing for glass and plastic bottles. The machine operates on the rotary principle with "GENEVA" mechanism and requires manual loading and unloading of bottles.
The automatic bottle rinser is an ideal companion to automatic bottle filling lines. The bottle rinser can utilize compressed gas to blow particulates off of the container or to be used with a sanitizing solution or water to rinse bottles prior to filling. The bottle rinser can achieve speeds of up to 40 bottles per minute.
The bottle washing machine is mainly used for washing plastic bottles and glass bottles. It mainly consists of such procedures as elastic mechanical hand bottle grabbing, turning, bottle rinsing, bottle controlling, resetting, bottle discharging, etc. Production capacity: 40-250 bottles/minute
The bottle washing machine is mainly used for purifying gas washing of plastic bottles and glass bottles. It mainly consists of such procedures as continuous bottle moving, bottle turning by rotary table, bottle rinsing, bottle controlling, bottle discharging, etc. It adopts continuous tracking washing, achieving fully automatic production.
It is suitable for various kinds of irregular-shaped bottles and standard bottles. With such features as stable performance, good drying effect, no dust pollution caused by brush, simple operation, maintenance-free, low energy consumption and no wearing parts, it is currently the ideal drying equipment. Production capacity: 20 000 bottles/hour
The machine adopts the linear bottle moving mode. The mechanical hand clamps the bottle and turns it to invert the bottle and clean the bottle inside. Water washing or purified air washing can be adopted for cleaning. Production capacity: 60 bottles/minute
This machine is used in food packing industry and it is mainly used in a production line composed of glass bottle cleaning bottle filling, locking cap and labeling. To operate the machine needs compressed air supply with a pressure of 0.6 - 0.8 MPa. All parts contacting the bottles are made of SS 304 or 316.
The machine is mainly used for cleaning glass bottles and PET bottles. It suits for full-automatic bottle cleaning before filling of wine and beverage manufacture. Capacity is up to 4,500 BPH. Applicable bottle diameter must be within 60 – 100 mm, bottle height — 160 – 320 mm.
