These machines are fabricated from best grades of raw material procured from reliable and reputed vendors and are ideal for mixing dry powder and granules homogeneously. All the contact parts are made of stainless steel such as SS 304 or SS 316. The effective volume for optimum homogeneity is between 35-70% of gross volume. Capacity available is 20 - 3000 L.

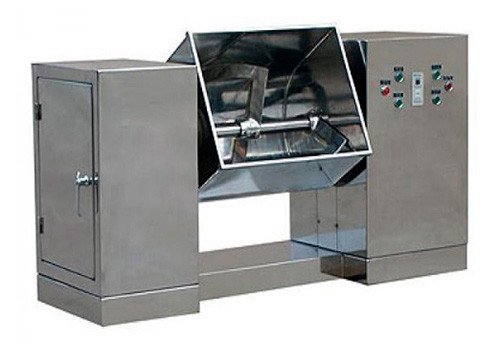

The machine operates on the Z blade principal. It consists of two Z-shaped mixing blades rotating towards each other at different speeds which cut down substantially the required batch mixing time. The bowl and Z mixing blades are made of stainless steel. The bowl has an acrylic cover which allows visual observation of mixing. Working capacity is 3.5 – 4 L.
This is a self-contained tumble blender intended for laboratory, Pilot-plant, and scale-up applications. It is suitable for processing a variety of materials including pharmaceuticals, chemicals, foods, cosmetics, plastics, and synthetic fibers. As the “V” shaped blender rotates the tumbling action brings about the mixing of the ingredients. The “V” blender can be offered in the capacities of 0.5 kg, 1.0 kg, and 2.0 kg, available in 316 stainless steel.
The machine is equipped with acrylic cover and specially designed mixing blade having two stages both right and left hand, ribbon type mixing blades. The left and right-hand spiral with an upper and lower blade is rotated to circulate the material to be mixed. The half-round bowl and spiral mixing blade are made out of stainless steel. Within a few minutes, it can be empty by tilting. Working capacity is 2.5 – 3 L.
This mixer is useful for free-flowing product or granules & operates on free flow principal. The mixing is achieved by the cone. The mixing drum is made of stainless-steel having capacity of 5 L. Operational capacity is 50% to 60%.
Cube Mixer is based on a movement, which through its tumbling effect produces a homogeneous mixture in the shortest possible time. The product to be mixed is treated very gently. The cube mixer can be attached to the universal gear (UD). The mixing movement of the product in the mixer is deflected and interfered with by 3 mixing rods made of stainless steel. Working capacity is 1.5 – 2 L.
This Blender operates on the free flow principle. It is used for dry blending, rapid mixing of all types of free-flowing powder and granules, mixing, lubrication and homogenizing of the powder and granules. It consists of a cone-shaped body, a circular central portion and top and bottom conical. The uniform, multidimensional arrangement of the Blender walls ensures good blending and mixing. The vessel is manufactured from stainless steel.
V-Shell Blenders are commonly used in pharmaceutical, nutriceutical, chemical, food and related industries to mix dried powder and granules. Mixing Weight: 100 kg/batch
SMG2-6 Lab High Shear Granulator is widely used in granulation process of pharmaceutical, food and feed industry because if it high efficient. Rated Output: 0.8-2 kg/batch

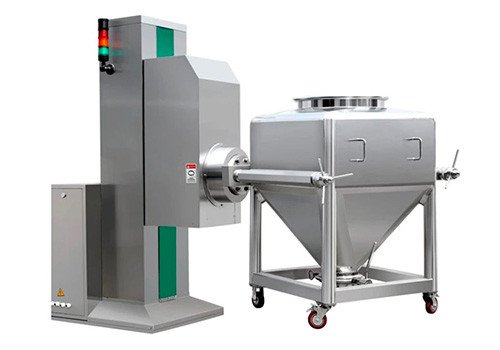

HZD series Bin Blender can automatically finish the whole process of clamping, lifting, mixing and falling, etc. Equipped with one set of HZD series Bin Blender and applying some different models of bins, pharmaceutical enterprises can satisfy with the mixing demands of large output and diversity products. It’s the desirable final mixing equipment for pharmaceutical factories. Meanwhile, it can be widely used in such areas as raw medicine material industry, chemical industry, foodstuff industry, etc.
