This is a semi-automatic machine used for the forming of the bottom of the American type cartons. The former makes it easy and quick to form cardboard boxes, which must simply be inserted into the machine from top to bottom. The four lower flaps are automatically folded and the box remains locked in place for filling. Applicable carton size must be within 200-600 x 160-500 x 110-400 mm.

After the carton being opened manually, this machine can fold bottom flaps automatically, then the carton will be filled manually, at last the machine will seal both bottom and up flaps automatically. The machine can be equipped into production line. Applicable carton size must be within 200-600 x 160-500 x 110-400 mm.

CXJ-A series case erector adopts adhesive tape for sealing, which is economic, fast and easy-operated. With process in sequence of unformed case taking, rectangle forming, bottom flaps folding, case conveying and bottom sealing. With adjustable tension of belt or tape, suitable for conveying and sealing the cartons that made of different materials.

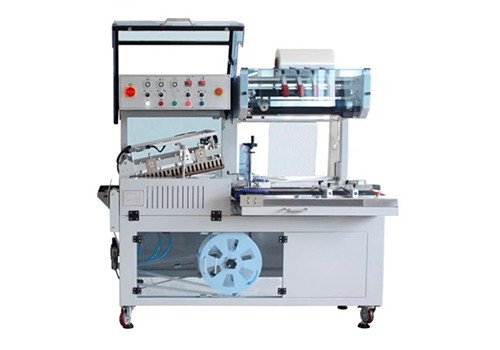

This is your best effective and economical choice for smart roomy facility layout. With packaging speed up to 25 PPM automatic L Bar Sealer is mainly applied to film wrapping for different products, which has the advantages of dustproof, damp-proof and beautiful sealing. To operate the machine needs compressed air supply with a pressure of 5-8 kg/cm3.

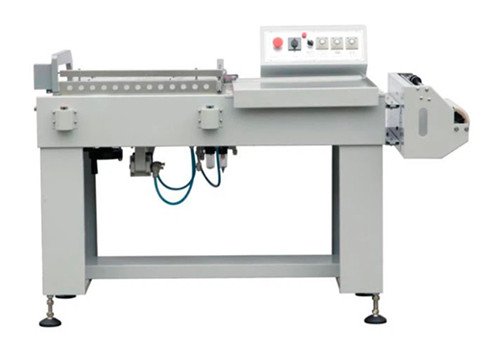

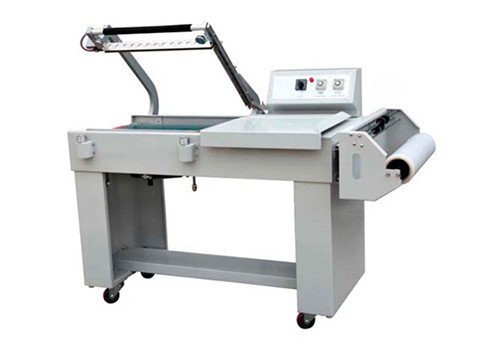

This machine with its heavy-duty frame construction, cast aluminum seal head and Micro Knife Seal Technology can work years with minimal repairs. It is used to wrap different products with POF, PVC or PP film. Capacity is 800 – 1200 units per hour. Maximal packing size is up to 450 x 400 mm.

The machine can convey the products automatically into shrink tunnel through conveying belt for shrink packaging after sealing & cutting. Equipped with shrink tunnel to reach higher working capacity. Safety device that prevents the sealing knife from overheating and guarantees operator's safety. Capacity is 800 – 1200 units per hour.

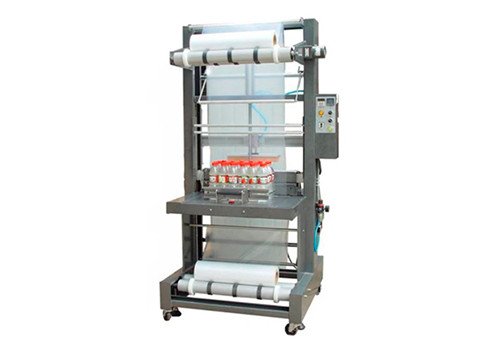

This semiautomatic sleeve sealing machine is a type of economic one among BSF series. Simple operation, push the products manually or pneumatically, sealing the film and the products enter the shrink tunnel automatically, and used PE, PP or other common shrinkable film to pack products. Packing speed is up to 12 trays.

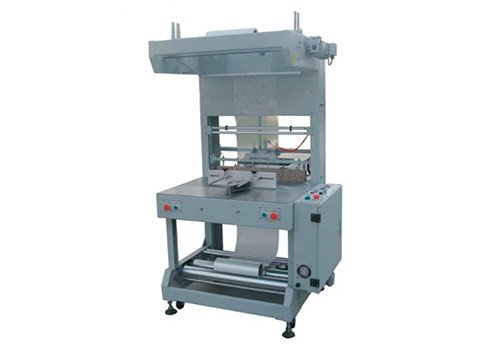

The product can be fed manually or pneumatically. When the sealing & cutting cycle is complete, the product is discharged into the shrink tunnel automatically. The machine is used to shrink package single and multiple products. Ideal solution for many industries, such as printing, pharmacy, floor, chinaware, beverage, beer, etc.

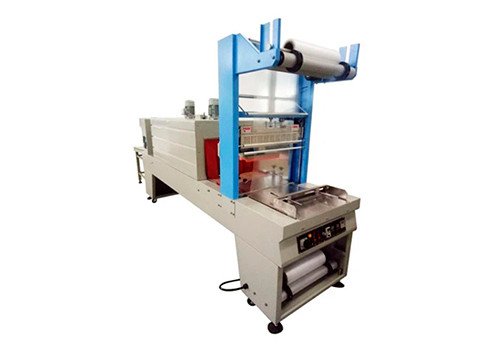

The most versatile and economical sleeve-wrapper with semiautomatic feeding to make multipacks of different size of various products (bottles, vases, jars, pots, cans, phials, cases etc.) and/or to protect boxes integrating and/or replacing the use of carton boxes at end-of-line with great management advantages. The sealing area is independent from the tunnel.

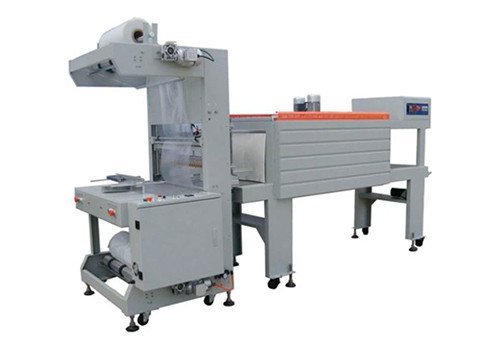

Sleeve wrapper and tunnel shrinking system designed to wrap a wide variety of packs, either as individual packs, or as collations. Apply for products such as bottled water, Beer, Soft drinks etc. Equipped with pneumatic pusher feeder with adjustable product guides. Packing speed is up to 12 trays.
