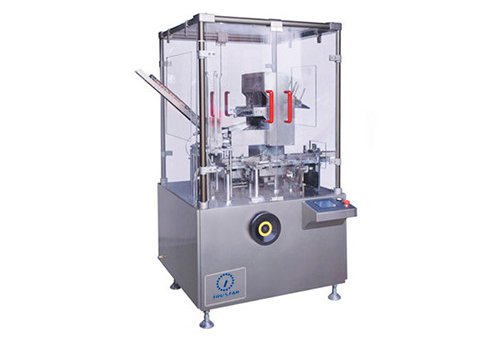

TRC-120A Vertical Cartoning Machine

Only 945, Per today 1

China Wenzhou Trustar Machinery Technology Co.,Ltd

Wenzhou Trustar Machinery Technology Co.,Ltd is a professional pharmaceutical and packaging machinery manufacturer and supplier, our product included pharmaceutical machinery series in solid preparation field, and foodstuff Packaging machinery series and blister card board packaging machine series. We supply good quality machines for our domestic and abroad customers, and supply timely and thoughtful service, and supply complete validation documents, and we also can supply total solution for you in solid preparation field and foodstuff packaging field.

Detailed

Characteristics

Capacity/min. pcs/min
120
Height, from mm
12
Heigth, to mm
50
Width, from mm
30
Width, to mm
85
Length, from mm
65
Length, to mm
125
Type of insertion
Horisontal

Description

This machine is suitable for feeding and encasing blisters. It consists of leaflet folding unit (1-4 folds) and feeding device, carton forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically. A hot-glue machine can be added to it. PLC controlled; parameters are set via HMI on a touchscreen. Output is 30 – 120 boxes per minute.
